Zebra Radient eV-CL

Feature-packed high-performance Camera Link frame grabber series

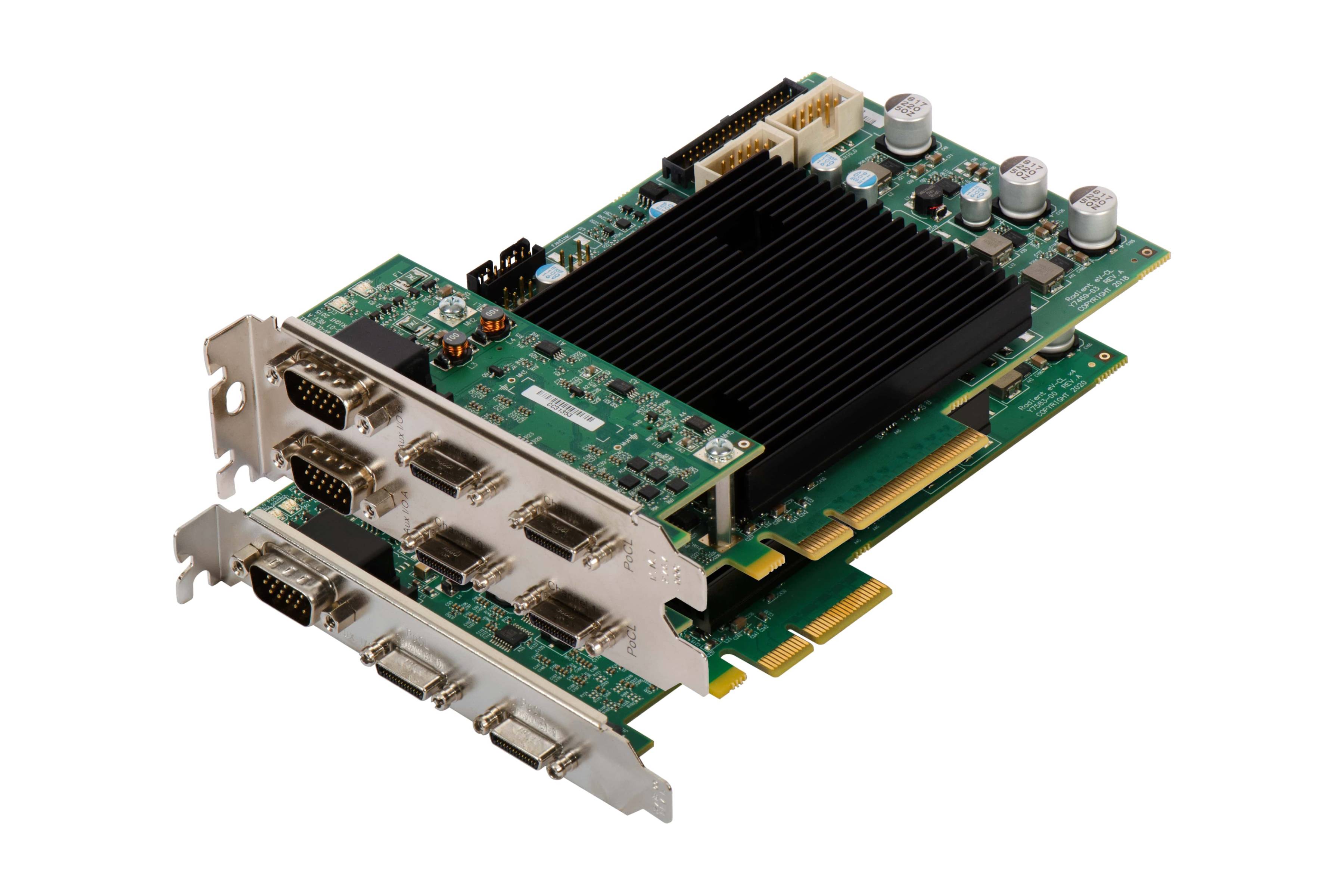

Radient eV-CL Frame Grabber Spec Sheet Product Image

Zebra Radient eV-CL is a series of Camera Link frame grabbers capable of handling image capture from a single lowest data-rate Camera Link device to multiple maximum-bandwidth Camera Link cameras. With the possibility of interfacing up to four Base or two Full/80-bit mode Camera Link cameras at up to 85 MHz on a single board with PoCL support, the Radient eV-CL provides users with the flexibility to configure systems to best match imaging needs while simplifying overall setup. The frame grabber line-up offers reliable image acquisition, extended cable length support, and high frame-rate image capture that will extend the effectiveness of the Camera Link standard for years to come.

Specifications

Zebra Aurora™ Software

Supported by Zebra Aurora Imaging Library™, a machine-vision software development kit (SDK) with a deep collection of tools for image capture, processing, analysis, annotation, display, and archiving

Exclusive Features
Available support for up to four Base or two Full/80-bit mode Camera Link cameras at up to 85 MHz per board, half-length board design, PCIe 2.1 x4 or x8 host interface
Performance
Perform deterministic image acquisition with the jitter-free Camera Link 2.1 interface
System Connectivity
Power-over-Camera-Link (PoCL) support at extended cable lengths
For all specifications Download The Full Spec Sheet

Radient eV-CL — Enable performance. Inspire potential. Experience the difference with Zebra.
For more information, visit www.zebra.com/radient-ev-cl
