Procedura wymiany baterii Zebra

Proaktywna wymiana baterii jest nową usługą uzupełniającą podstawowy plan konserwacji Zebra OneCare™ dla komputerów przenośnych firmy Zebra. Batteries will be proactively replaced when they fall under a Remaining Useful Life of less than 30 days. Wszystkie baterie wpisujące się w tę kategorię zostaną wysłane na wymianę do lokalizacji użytkownika końcowego, w zależności od informacji podanych podczas wdrażania usługi. Nowa usługa zadba o cały proces wymiany baterii za Ciebie, więc nie trzeba już zgadywać, która z nich wymaga wymiany. Wszystkie baterie monitorowane są każdego dnia / miesiąca za pomocą predykcyjnych algorytmów analitycznych. When Zebra identifies a battery which will fail over the next 30 days, a new battery will be shipped. Po dostarczeniu nowej baterii do lokalizacji użytkownika końcowego, można ją wymienić, a stara bateria zostanie odesłana z placówki klienta.

Usługa Proaktywnej wymiany baterii jest obecnie dostępna w następujących obszarach/krajach (obecnie w urządzeniach przenośnych, a w przyszłości w drukarkach i tabletach):

  • EMEA– UE, UK i Szwajcaria
  • Ameryka Północna – Stany Zjednoczone i Kanada

Główne obszary, w których usługa będzie sprzedawana, są obszarami wolnego handlu z dostawą obsługiwaną za pomocą naziemnych baz logistycznych z placówek Zebra DC.

Wybierz swój komputer przenośny


Battery replacement steps apply to all EC50 and EC55 models.

EC50 Front View

1. From the notch in the top left corner, use your fingernail or a plastic tool to lift the battery cover.

EC50 From the notch lift battery

2. Use the battery pull tab to lift and remove the battery from the battery compartment.

EC50 Use the battery pull tab

3. Peel off the adhesive liner on the back of the battery.

EC50 Peel off adhesive liner

4. Insert the battery, top first and with the warning label facing up, into the battery compartment.

5. Press the battery down into the battery compartment.

EC50 Insert Battery top first

6. Insert the battery cover, bottom first, into the battery compartment.

7. Rotate the battery cover down into the battery compartment.

(Podczas montażu baterii o większej pojemności należy zastosować odpowiednią pokrywę baterii).

EC50 Insert battery cover bottom first

8. Press the sides of battery cover down until the notches on the sides snap into place.

EC50 Press sides of battery cover down

Battery replacement steps apply to all MC33 series models such as MC3000, MC3300R, MC3300x, MC3300xR and MC3300ax.

MC3300XR Front View

1. Push in the two Battery Release buttons. Baterię należy wymienić w ciągu pięciu minut, aby zachować stan pamięci urządzenia.

MC3300xr Push in the two battery release buttons

2. Remove the battery from the battery compartment.

MC3300xr Remove Battery from compartment

3. Slide the front of the battery into the battery compartment

MC3300xr align the battery into compartment

4. Press battery down firmly. Ensure that both battery release buttons on the sides of the MC33 return to the home position.

MC3300xr Press Firmly

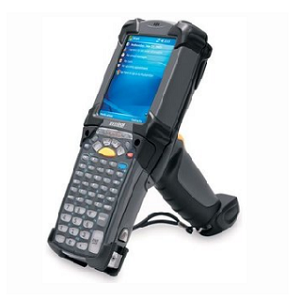

MC9190G Front View

Kroki dotyczące wymiany baterii mają zastosowanie do:

all MC90 series models such as MC9000, MC9060, MC9060-G, MC9090 CE, MC9090-G, MC9090 WM and MC9090-Z.

all MC92 series.

1. Prior to removing the battery, press the red Power button.

2. Tap Safe Battery Swap.

3. The Indicator LED Bar lights red.

4. When the Indicator LED turns off, press the primary battery releases (1). Bateria częściowo wysunie się z urządzenia.

5. Press the secondary battery release (2), on top of the battery, and slide the battery out of the device.

MC90 Battery Swap Steps

Battery replacement steps apply to all MC93 series models.

MC9300 przód z prawej

1. Push in the two primary Battery Release buttons.

Baterią wysunie się częściowo. Po wyjęciu baterii w trybie Hot Swap wyświetlacz wyłączy się, a urządzenie przejdzie w tryb oszczędzania energii. Urządzenie przechowuje dane w pamięci RAM przez około pięć minut. Baterię należy wymienić w ciągu pięciu minut, aby zachować stan pamięci urządzenia.

MC93 Push Primary Release Buttons

2. Push in the secondary battery release buttons on the sides of the battery.

MC93 push secondary release buttons

3. Remove the battery from the battery slot.

MC93 Remove Battery

4. Align the battery with the battery slot and push the battery into the battery slot.

MC93 Align push battery

5. Press the battery firmly into the battery well.

Upewnić się, czy oba przyciski zwalniające baterię umieszczone po bokach urządzenia wróciły do swojego pierwotnego położenia. Usłyszysz dźwięk kliknięcia, potwierdzające, że oba przyciski zwalniające baterię znajdujące się po bokach urządzenia wróciły do swojego pierwotnego położenia, zabezpieczając baterię na swoim miejscu.

6. Press Power to turn on the device.

Battery replacement steps apply to all TC21 and TC26 series models.

TC21 widok z przodu

1. Press the Power button until the menu appears.

2. Touch Power Off.

3. Wait for the device to completely turn off.

4. If the hand strap is attached, slide the hand strap clip away from the bottom of the device, and then lift.

TC21 Remove Handstrap

5. Press the two battery latches in.

TC21 Press Battery Latches

6. Lift the battery from the device.

TC21 Lift Battery

7. Insert the replacement battery, bottom first, into the battery compartment in the back of the device.

8. Press the battery down until the battery release latches snap into place.

TC21 Insert Battery Bottom First

9. Replace the hand strap, if required.

10. Press the Power button to turn on the device.

Battery replacement steps apply to all TC51, TC52, TC56 and TC57 series models.

TC51 TC56 Front Facing View
TC52 widok z przodu

UWAGA: Nie wkładać, ani nie wyciągać karty microSD w trakcie wymiany baterii.

1. Press the Power button until the menu appears.

2. Touch Battery Swap.

3. Follow the on-screen instructions.

UWAGA: Nie wyciągać baterii, jeśli czerwona dioda LED całkowicie nie zgaśnie. Może to spowodować utratę danych.

4. Wait for the red LED to completely turn off.

5. If hand strap is attached, remove hand strap.

6. Press the two battery latches in.

TC51 Press Two Latches

7. Lift the battery from the device.

TC51 Lift Battery

8. Insert the replacement battery, bottom first, into the battery compartment in the back of the device.

9. Press the battery down until the battery release latches snap into place.

TC51 Insert Battery Bottom First

10. Replace the hand strap, if required.

11. Press the Power button to turn on the device.

TC53 Strona internetowa ze zdjęciami 1x1 300x300

Uwaga: wymiana True Hot Swap dotyczy jedynie urządzeń premium.

Aby wykonać wymianę True Hot Swap:

1. If a hand strap is attached, remove the hand strap.

2. Press the battery latches in and lift up to remove the battery from the device. A 30 second countdown timer displays. Natychmiast załączy się zastępczy superkondensator, a urządzenie pozostanie włączone z przygaszonym ekranem.

Note: If the battery is not replaced after 30 seconds (max.), the device display turns off and the device enters into memory persistence state for an additional 60 seconds (max.).

3. Insert the replacement battery, bottom first, into the battery compartment in the back of the device.



4. Press the battery down until the battery release latches snap into place. Jeśli ekran urządzenia jest wyłączony, powinien się automatycznie włączyć.

Note: If the device does not automatically turn on, press and hold the power button for 6 seconds and the device reboots.



5. Replace the hand strap, if required.

Battery replacement steps apply to all TC70, TC70x, TC72, TC75, TC75x and TC77 series models.

TC70x TC75x Android Front Facing View
TC72 widok z przodu

UWAGA: Nie wkładać, ani nie wyciągać karty microSD w trakcie wymiany baterii.



1. Remove any accessory attached to the device.

2. Press the Power button until the menu appears.

3. Touch Battery Swap.

4. Follow the on-screen instructions.

5. Wait for the LED to turn off.

6. If hand strap is attached, slide the hand strap clip up toward the top of the device and then lift.

TC70 remove hand strap

7. Press the two battery latches in and lift the battery from the device.

TC70 Press Battery Latches Lift

UWAGA: należy wymienić baterię w ciągu dwóch minut. Po dwóch minutach urządzenie uruchomi się ponownie, co może spowodować utratę danych.

8. Insert the replacement battery, bottom first, into the battery compartment in the back of the device.

TC70 Insert Battery Bottom

9. Press the battery down until the battery release latch snaps into place.

TC70 Press Battery Down Firmly

10. Replace the hand strap, if required.

11. Press and hold the Power button to turn on the device.



NOTE: After replacing the battery, wait 15 minutes before using Battery Swap again.
