Vehicle-Mounted Computers

8525 Vehicle-Mounted Computer Support

Models

8525

Zebra is no longer offering this product for sale. The product resources will no longer be updated but will remain accessible below for your use and convenience. Please note that Customer Support is not available after the Service and Support Discontinuation date. If you require additional support, please contact a Zebra Authorized Service Provider.

Last Sale Date: December 31, 2014
Service and Support Discontinuation Date: June 30, 2019

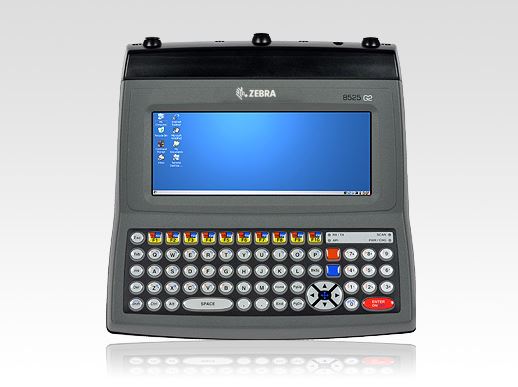

Zebra 8525 warehouse computer

8525

Downloads

Software that is essential for operating and connecting this device.

I agree to and accept the above terms and conditions.

Installation Requirements

7535G2, 7530G2, 8525G2 and 8530G2 Wince 5.0 Upgrade Script

This script is intended to be used with the above G2 Wince devices. This script is designed

to help upgrade BooSt, PCON and the Windows CE OS image.

Please read the following cautions before performing this function:

1) Performing this function will require re-installation of all applications presently on the device.

2) All settings will have to be reconfigured.

3) Installed OS will not be preserved.

Format Procedure:

1) Confirm that the script is named pxa27xos.img and copy it to a USB flash drive. The USB drive may be FAT-12 or FAT-16,

    but not FAT-32.

2) Remove or rename any other file on the USB drive named pxa27xos.img.

3) Copy the BooSt image onto the USB drive and rename it to G2BT.img

4) Copy the PCON image, and rename it to G2PCON.img

5) Finally now copy the Windows CE OS image and rename it to G2CE.img

6) Insert the USB drive:

- 7535/30 terminal: PDM

- 8525/30 terminal: USB adapter cable (P/N 1008088-001)

7) Boot the device into BooSt:

- 7535/30 hold the Blue + Enter + Scan buttons for 7 seconds.

- 8525/30 hold the Blue + Enter + Space buttons for 7 seconds.

8) The script should run, and load the appropriate files. Do not remove power until the upgrade process has been successfully completed.
